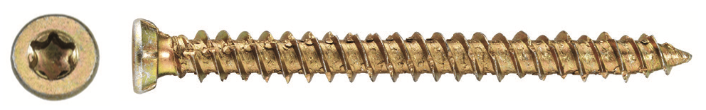

Self-tapping concrete screws for direct fixing into concrete, brick, stone, block and wood. 7.5mm thread diameter with a 6mm pilot hole, available in lengths from 40mm to 302mm. Additional sizes available on request — call us on 0121 333 7288.
Categories: Concrete Screws, Fixings / Fastenings
Concrete screws offer a fast, reliable fixing solution for a wide range of solid base materials on site. Self-tapping directly into the substrate, they eliminate the need for a separate anchor or plug — drill the correct pilot hole, drive the screw, and the fixing is done. Suitable for concrete, brick, stone, block and wood, they cover the majority of everyday fixing tasks across groundworks, civils, general construction and fit-out.
This range uses a 7.5mm thread diameter with a 6mm pilot hole throughout, with screw lengths running from 40mm up to 302mm to accommodate a wide variety of thickness-to-fix requirements. If the size you need isn't listed, additional sizes are available on request.
Need a size that isn't listed? Email us at sales@fixingsplus.co.uk and we'll source it for you.
| Part No. | Thread Size (mm) | Hole Dia. (mm) | Screw Length (mm) | Thickness to Fix (mm) |
| CS75040 | 7.5 | 6 | 40 | 5 |
| CS75050 | 7.5 | 6 | 50 | 15 |
| CS75060 | 7.5 | 6 | 60 | 25 |
| CS75080 | 7.5 | 6 | 80 | 35 |
| CS75100 | 7.5 | 6 | 100 | 50 |
| CS75120 | 7.5 | 6 | 120 | 70 |
| CS75150 | 7.5 | 6 | 150 | 100 |
| CS75180 | 7.5 | 6 | 180 | 130 |
| CS75212 | 7.5 | 6 | 212 | 170 |
| CS75252 | 7.5 | 6 | 252 | 210 |
| CS75302 | 7.5 | 6 | 302 | 260 |
